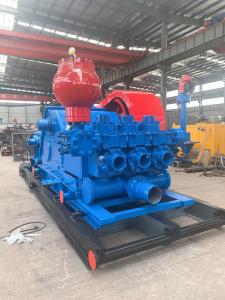

3NB1000 Reciprocating Mud Pump 125SPM Oilfield Mud Pump

Product Categories

Shandong Xinwei Drilling Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : XW

Model Number : 3NB1000

Certification : ISO9000

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 30

Power Rating : 1000

SPM : 125

Gear Ratio : 3.482

Inlet Dia : 254

Outlet Dia : 101

Stroke Length : 273

Contact Now

1000 hp/kw 3900*2240*2052 3NB Series Tripiex Mud Pump

3NB-1000泥浆泵技术参数表

型号Model		型式Type		输入功率 Input power			额定泵速 Rated pumpSpeed		冲程长度 Stroke length		齿轮传送比 Gear ratio		主动轮额定转速转/分 Drive Wheel Rated speed R/Min
3NB-1000		三缸单作用 Triplex Single-Acting piston pump		735kw 1000(hp)			125冲/分 Stroke/Min		274mm		3.482		435.25
吸入管径Dia.of Suction Manifold		排出管径Dia.of Discharge Manifold		外形尺寸(立方毫米) Overall size mm³					重量 Weight(kg)		不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight
254mm		101mm		3900×2240×2052					17500		16000
性能参数表
			缸套直径(Cylinder dia) mm
	泵速(冲/分) Pump Speed(Stroke/Min.)		Ф120		Ф130			ф140	ф150	ф160		ф170		ф180
			理论排量(升/秒)Theoratic Displacement(L/S)(GPM)
125			19.29			22.64		26.25	30.14	34.29		38.71		43.40
120			18.52			21.73		25.20	28.93	32.92		37.16		41.66
110			16.97			19.92		23.10	26.52	30.17		34.06		38.19
100			15.43			18.11		21.00	24.11	27.43		30.97		34.72
90			13.89			16.30		18.90	21.70	24.69		27.87		31.25
泵压Pump pressure(Mpa)			35			33		28	24	21		19		15
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
